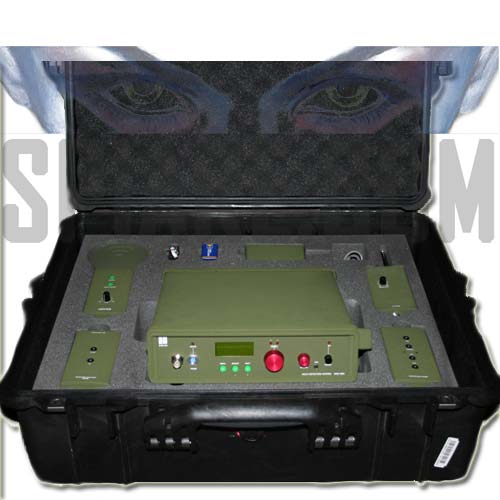

PLM-MDS4002
CARATTERISTICHE
DETECTION CAPABILITY: all
types of transmitters including AM, WFM, NFM, sub-carrier, carrier only,
single side band, double side band
and suppressed carrier. Also scrambled,
burst, frequency hopping and other spread spectrum types
FREQUENCY RANGE: 10kHz
- 6GHz
RF RECEIVER TYPE: single conversation
super heterodyne, harmonics local oscillator
DYNAMIC RANGE: typically
greater than 80dB
DEMODULATORS: AM, WFM,
NFM and SC
ATTENUATORS: 0, -30dB
at active whip
SENSITIVITY: -60dBm
TUNING METHODS: manual tuning
, automatic, to strongest signal
TONE FREQUENCY: 1 - 1.5kHz
CONTROLS:
on/off switch,
LCD control switches:
menu switch
next switch,
select switch,
manual tuning knob
volume control knob
INDICATORS:
power on
LCD display
manual tuning
probe connection
INPUTS:
RF:
BNC, 50ohm
PROBES:
5-pin
AC: 3-pin mains socket
DC: 2.1mm 12VDC socket
OUTPUT:
3.5mm stereo headphone socket
internal speaker (audio): 8ohm, 300mW
internal speaker (tone): 8ohm, 400mW
AC POWER SUPPLY:
110V, or 220 to 240VAC,
internal selection
DC POWER SUPPLY:
12VDC external
12VDC internal rechargeable battery
INTERNAL BATTERY:
constant current charging
7 hours operating time typically
ACCESSORIES:
carrying case
mains lead
headphones
test transmitter
telephone connecting lead (1m)
BNC to BNC lead (1.2m)
MAIN UNIT SIZE: 250 x 240 x
65mm
FULL SYSTEM WEIGHT: 8kg
RF PROBE:
The RF probe
is designed to detect room, telephone and tracking transmitters
POWER:
Supplied
by main unit
FREQUENCY
RESPONSE: 10MHz – 6GHz
ANTENNA:
6-segment
whip
TYPE:
Active
CONTROLS: Sensitivity knob
OUTPUT:
BNC, 50ohm (1.5metre lead connection to main unit)
SIZE:
120 x 60 x 30mm
-
CAMERA/MAINS
CARRIER PROBE:
Devices using the
mains ring as a transmission medium can be detected when using the camera/mains
carrier probe. Hidden cameras are also detected
-
POWER:
Supplied by main unit
-
FREQUENCY RANGE:10KHz
– 130KHz and 50KHz – 700KHz
-
ANTENNA:
Permanently attached VLF loop
-
CONTROLS:
-
Camera detection
selection switch
Mains carrier
detection selection switch
Tuning knob
-
INDICATORS:
-
Camera selection
Mains carrier selection
-
OUTPUT:
5-pin
-
SIZE: 120
x 60 x 30mm
-
MICROPHONE
PROBE:
Hardwired
microphone systems are difficult to detect. They are not transmitting devices
and therefore, there is no RF leakage. Also, the distance between the microphone
and the processing unit may be several miles. This is a favoured method
of long-term eavesdropping. The microphone probe detects both active and
non-active microphones.
-
POWER:
Supplied by main unit
-
CONTROLS:
-
Normal/reverse
microphone polarity selection switch
Line
on/off selection switch
-
INDICATORS:
-
Normal microphone polarity selection
Reverse microphone polarity selection
Line on selection
Line off selection
-
OUTPUT:
5-pin
-
SIZE: 120
x 60 x 30mm
-
TELEPHONE
ANALYSER PROBE:
Specifically
for checking telephone lines is the telephone analyzer probe. A direct
connection is made between the telephone line and the PLM-MDS4002 so that
transmitters, current carrier devices and modifications to the line or
the telephone can be found.
-
POWER:
Supplied by main unit
CONTROLS:
RF /telephone line audio selection switch
INDICATORS:
RF selection
Audio selection
-
Telephone
socket (via telephone lead to telephone line)
5-pin /
BNC
SIZE: 120
x 60 x 30mm
-
-
LASER/INFRA-RED
PROBE:
--
-
POWER:
Supplied by main unit
-
FIELD OF VIEW:
40 degrees
-
IR WAVELENGTH
BANDPASSED: 725 – 1150nm
-
HALF-POWER
ANGULAR RESPONSE: 48 degrees
-
SPECTRAL PEAK:
940nm
(infra-red)
OUTPUT: 5-pin
SIZE: 90
x 50 x 30mm
-
REMOTE MONITORING
UNIT
In order to
log activity between sweep operations the remote monitoring unit can be
discretely positioned on a desk or in a drawer somewhere to alert the operator
to eavesdropping devices introduced into the protected space.
SPECIFICATIONS:
POWER:
supplied by main unit
CONTROLS:
silent switch
audio switch
vibration switch
reset switch
INDICATORS:
silent LED
audio LED
vibration LED
reset LED
SIZE:
120 x 60 x 30mm |
